Features:

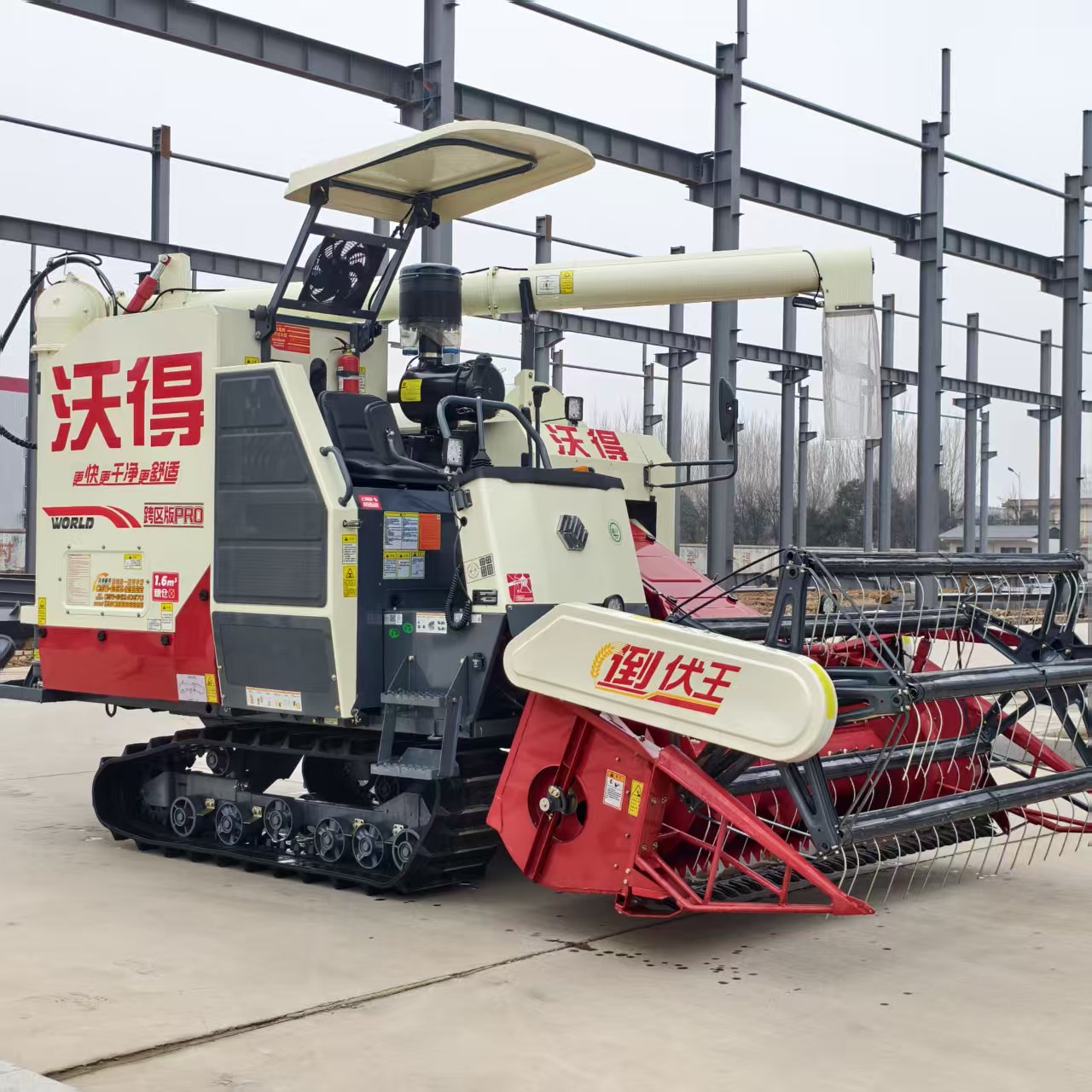

• Combine rice harvesters offer high efficiency, reliable performance, and excellent adaptability to muddy paddy fields. They feature strong power, low grain loss, and efficient threshing, ensuring high harvesting quality.
• The reinforced crawler system provided to ensure good traction and stability, simple operation and easy maintenance, reduce downtime and operating costs.
• Crawler Self-Propelled Full-Feed Type: Ensures stable and efficient operation on uneven or muddy terrain.
• Engine: Water-cooled, 4-stroke, direct injection, Turbocharged diesel engine. Full Feed combine harvester:
• The whole crop is fed into the threshing drum, providing better cleaning and higher grain recovery than half-feed types.
• Grain Tank System:
• The cleaned grains are collected in a built-in grain tank, eliminating manual collection and allowing continuous operation. The tank can be unloaded hydraulically into a trolley or bag.
• Multi-Crop Capability: Suitable for rice, wheat, maize, barley, and other cereals with minor adjustments.
• High Efficiency & Capacity: Designed for large-scale farms, reducing time and labor costs.
• Powerful Engine & Mobility: Equipped with a diesel engine, strong
transmission, and track or wheel system for smooth movement even in muddy or uneven fields. Rated Power:
• 120 HP, suitable for heavy-duty field performance.
• Electric Start System: Reliable and easy engine start with electric starter.
• Feeding Capacity: 6 kg/s, ensuring consistent and continuous feeding performance.
• Fuel Efficiency: Fuel consumption ≤ 32 kg/ha, with a fuel tank capacity of 240 L
• HST & Gearbox model: Suitable
• Ground Clearance: 350 mm
• Operating Weight: 3800-4000 kg (Approx)
• Hydraulic Height Adjustment: Enables cutting width and height optimization as per crop condition.
• Cutting Width: 2200-2220 mm, with pickup reel diameter :900-910 mm.
• Threshing Cylinder: Single cylinder for efficient threshing and separation.
• Grain Tank Capacity: 1.7 m³, with top-mounted, swing-type discharge auger.
Operational Efficiency: 0.50 ha/hour (hectare per hour), depending on crop and field condition.
Technical Specifications:
Dimensions:
• Overall Length: 5300-5320 mm
• Overall Width: 2780-2800 mm
• Overall, Height: 2900-2930 mm
• Sorting plate width: 778mm
• length: 1783mm
• Concave area: 2.25- 2.5m2
Engine:
• Type: Water-cooled, 4-stroke, Direct Injection, Turbocharged Vertical Diesel Engine
• Output (HP)/rpm:120-125/ 2600
• Displacement: 3.6L
• Gearbox: Hydrostatic Transmission with Mechanical Range
• Starting System: Electric Start
Feeding & Fuel:
Feeding & Fuel
• Feeding Capacity: 6 kg/s
• Fuel Tank Capacity: 240 L
• Fuel Consumption: ≤ 32 kg/ha
Chassis & Driving System:
• Ground Clearance: 350 mm
• Operating Weight: 3800 kg
• Crawler: 500-510 x 90-92 x 55-60 mm
• Track Gauge: 1250-1260 mm
• Transmission: Suitable, As per Model QH115D
• Working Speed:
• Low: 0 - 4.5 km/h
• Medium: 0 - 6.0 km/h
• High: 0 - 7.2 km/h
Cutting & Threshing:
• Pickup Reel Diameter: 900-910 mm
• Cutting Width: 2200-2220 mm
• Reel Rotation speed: 25-60rpm
• Height Adjustment: &l
