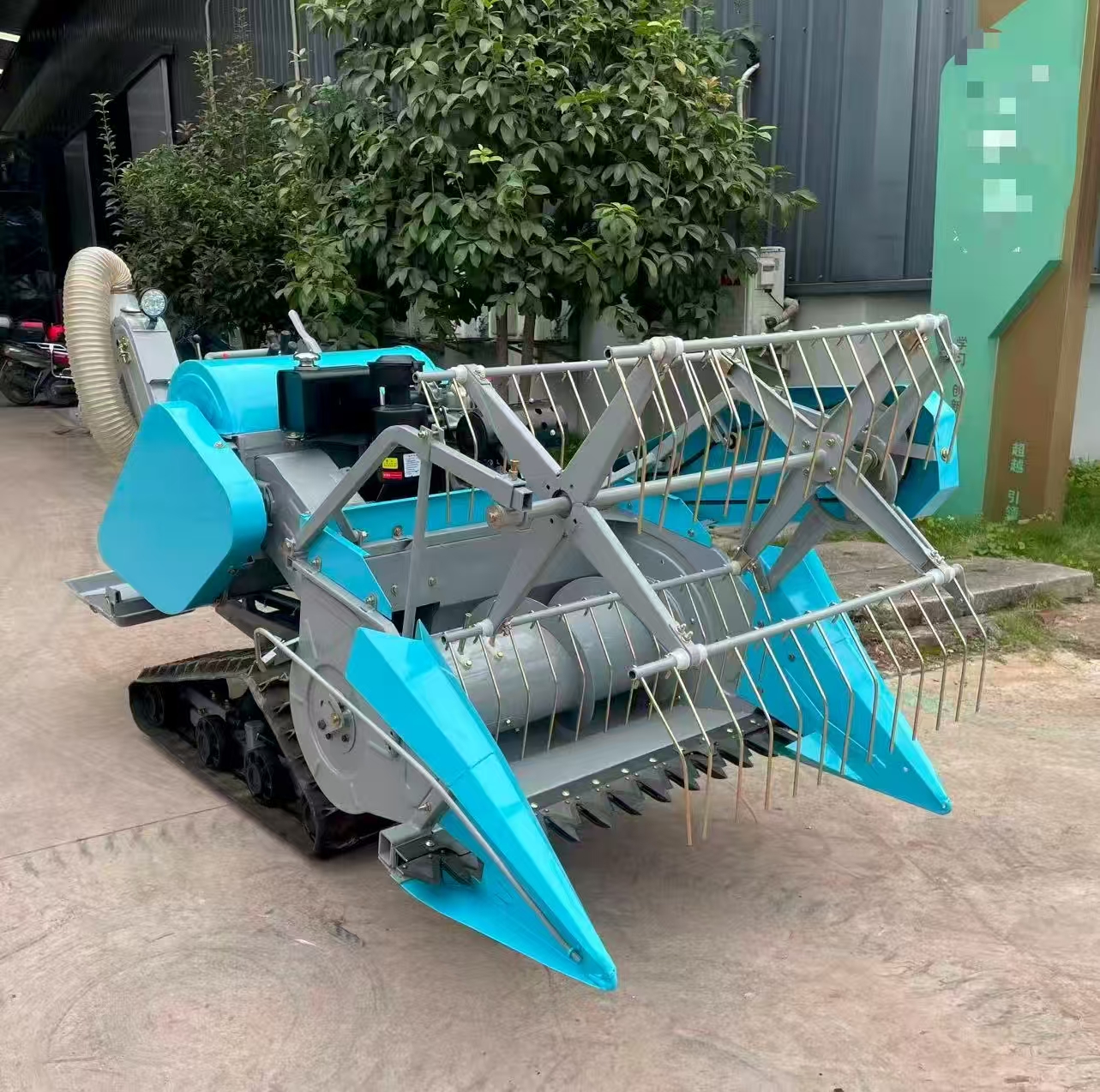

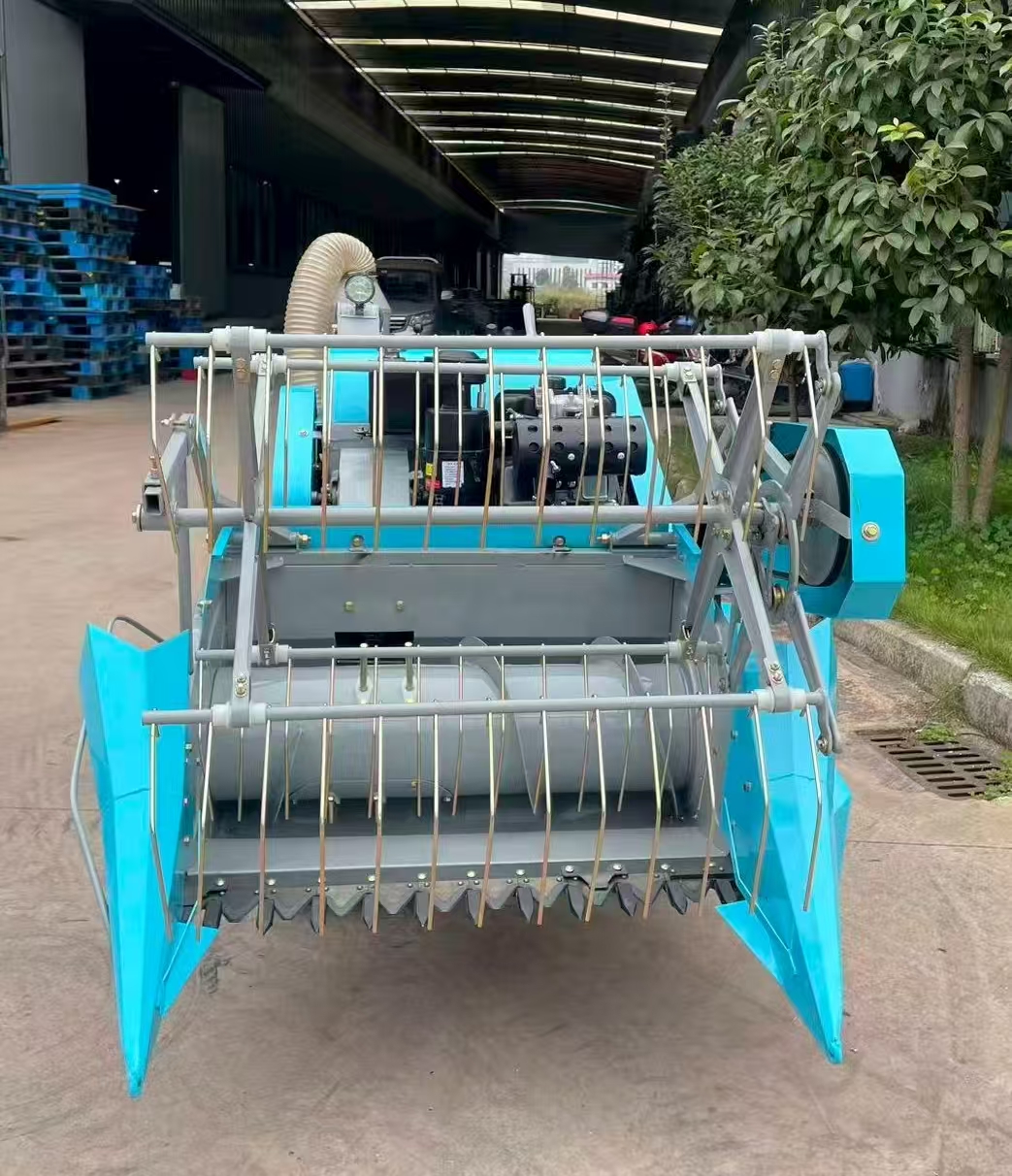

Rice and Wheat Reaper

Features:

Reaper is a machinery for reaping crops (Rice and Wheat), carrying the crops to the desired places. So, it’s designed for easy working on a large area for a long time in eicient and efective manner.

Technical Specifications:

• Type: Self-propelled, Rice & Wheat Reaper

• Working Capacity (Ha/Hour): 0.5

• Fuel Consumption (Litter/Hour): 1.0- 1.5, Gasoline

• Crop: Rice & Wheat

• Harvesting Loss (%): 1.0- 1.2

• Harvesting Field: Both Dry and Wet

• Placement Angle: 90 ±20 Degree

• Transmission: Chain Gear type

• Gearbox: All-aluminum gearbox

Reaping:

• Reaping Width (mm): 1200- 1210

• Reaping Height (mm): ≥50

• Reaping Device: Reciprocating blade bar

Engine:

• Type: Single/multi-cylinder, 4-Stroke

• Brand: Qiantong & Model: E- QR415W  best quality & best fitted one

• Power (Hp): 7 Hp

• Rpm: 3600

• Fuel: Gasoline

• Travel Speed (Km/h.)

• Forward: 3.0

• Reverse: 2.50

• Wheels and Tires: Dimensions, Materials etc. of Wheels and Tires will be compatible to design and as per standard practice.

Operation & Control:

• Main Clutch, harvesting Clutch, Height Adjustment of handle etc.

for easy operation and control. High quality gears, bearings & V-Belts etc.

Delivery:

• Upper Delivery Devices: Revolving chain with lug plates

• Lower Delivery Device: Revolving chain

• Crop Plant Release: Right side (viewed from rear of the machine)

• Dimension: 2550*1150*1200mm

• Weight(kg): 350 Kg

• Color: Yellow/Blue/Red
